Lec 6: Code and Data
Boaz Barak (instructor), Brian Sapozhnikov (Head TF), Albert Chalom, Alexis Ross, Charles O’Mara, Daniel Chen, David Li , Jambay Kinley, Jane Ahn, John Shen, Josh Seides, Laura Pierson, Pranay Tankala, Raymond Lin, Theresa Nguyen, Wanqian Yang, William Fu, Hikari Sorensen (Extension TF), Eric Lu (Patel Fellow), Yueqi Sheng (Advanced section), Chi Ning Chou (Advanced section).
Laptops/phones only on last 5 rows please.
Patel Fellow: Eric Lu
Email: ericlu01@g.harvard.edu
Can also Facebook message
Please sign up with BSC as well
Go to sections!! (more capacity further from deadline)
Hikari’s section is recorded
What is CS 121 about?
Duality of code and data Feeding programs to other programs or themselves.
Universality One program can evaluate all others.
Completeness and Emergence/Phase transitions All sufficiently rich models are equivalent.
Uncomputability and intractability The dark side of completeness
Role of randomness in computation
Hardness as a resource derandomization, cryptography
Physical world as a computer (e.g., biological systems, social systems, quantum computers,..)
Course outline
Three Theorems
Theorem 1: For every function \(F:\{0,1\}^n \rightarrow \{0,1\}\) there is an \(O(2^n/n)\) line NAND program computing \(F\). (last week)
Theorem 2: There is an \(O(S^2 \log S)\) line NAND program that computes \(EVAL_{S,n,m}:\{0,1\}^{S+n} \rightarrow \{0,1\}^m\), where for \(P\in \{0,1\}^S\) and \(x\in \{0,1\}^n\), \(EVAL_{S,n,m}(P,x)=P(x)\). (today)
Theorem 3: There exists \(F:\{0,1\}^n \rightarrow \{0,1\}\) that is not in \(Size(2^n/(100n))\). (today)
Thm 3: something can’t be done
Thm 1+2: something can be done: algorithms, programming
Heart of this lecture
An algorithm is a piece of text that can be interpreted as instructions for manipulating pieces of text.
“Trivial observation:” Every NAND program of \(s\) lines can be written using \(O(s \log s)\) alphanumeric + whitespace characters
Corollary 1: Can think of an \(s\)-line program \(P\) as an \(S=O(s \log s)\) bit string.
Corollary 2: Can think of a string \(x\) as a program \(P\).
Corollary 3: Sometimes your computer will think of your strings as programs.
The counting argument
How many functions are there from \(\{0,1\}^4\) to \(\{0,1\}\)? pollev.com/cs121
a. 16
b. 128
c. 1024
d. 65536
Lemma: \(|\{ f | f:A \rightarrow B \}| = |B|^{|A|}\).
Lower bound via counting
Theorem 3: There exists \(F:\{0,1\}^n \rightarrow \{0,1\}\) that is not in \(Size(2^n/(100n))\).
Proof: We’ll show \(|Size(2^n/(100n))| \lt 2^{2^n}\).
Represent \(s\) line program in \(\leq 10s\log s\) length string.
For \(s=\tfrac{2^n}{100n}\), length \(\leq 10\tfrac{2^n}{100 n}\log(\tfrac{2^n}{100 n})\)
\(\leq \tfrac{2^n}{10 n}n = \tfrac{2^n}{10}\).
\(|Size(2^n/(100n))| \lt 2^{2^n/10}\). QED
Restatement: \(|Size(2^n/(100n))| \leq 2^{0.1 2^n}\).
Fact: Can simulate \(s\)-node neural network by \(100\cdot s^3\) line NAND program.
Exercise: 99.9% of functions mapping a \(100\times 100\) black and white image to a 0/1 value cannot be computed by a neural network of fewer than \(10^{500}\) nodes. vs \(10^{11}\) neurons in brain, \(10^{22}\) neurons on earth, \(10^{82}\) atoms in observable universe
Almost no function on 100 by 100 images is computable by less-than-universe-sized neural network!
Restatement: A random function is uncomputable by less-than-universe-sized neural network with probability \(\geq 0.999\).
Exercise
Reconcile the following two facts:
- For any \(n\geq 1000\), 99.9% of functions \(F:\{0,1\}^n \rightarrow \{0,1\}\) cannot be computed by any biological or electronic computer that fits inside the universe.
- Electronic, human and animal computers continually do amazing computations including building bridges and spaceships, solving highly involved equations, proving theorems, recognizing prey from predator, etc.
Big picture
Questions
- Given algorithm \(A\) and input \(x\), what is \(A(x)\)? - execute an algorithm (Math 21a/b/…)
- Given a high level description of algorithm \(A\), express it in NAND or other precise language - program an algorithm (CS 50/…) + compile an algorithm (CS 153).
- Given algorithm \(A\), what is its maximum running time on all length \(n\) inputs? - analyze an algorithm - CS 124
- Given function \(F:\{0,1\}^n \rightarrow \{0,1\}\), what is the best algorithm to compute \(F\)? - analyze all potential algorithms - CS 121.
Theorem 2
Theorem 2: There is an \(O(S^2 \log S)\) line NAND program that computes \(EVAL_{S,n,m}:\{0,1\}^{S+n} \rightarrow \{0,1\}^m\), where for \(P\in \{0,1\}^S\) and \(x\in \{0,1\}^n\), \(EVAL_{S,n,m}(P,x)=P(x)\). Actually: Only care that it’s \(O(S^c)\) for some \(c\gt0\): i.e., \(poly(s)\).
In words:
Take description of \(s\)-line NAND program \(P(x)\): \(S=O(s \log s)\) bits.
Take input \(x \in \{0,1\}^n\)
- Output \(P(x)\)
Finite function: Obviously computable in \(2^{O(s \log s)}\) lines.
Content of theorem: Can be done in much fewer lines: \(poly(s)\)
Exercise
Let \(EQUAL_n:\{0,1\}^{2n} \rightarrow \{0,1\}\) defined as
Prove that \(EQUAL_n \in SIZE(O(n))\). (i.e., there is \(c\) such that for suff. large \(n\), \(EQUAL_n \in SIZE(c\cdot n))\)
General NAND techniques
Data structures: Use \(LOOKUP\), \(EQUAL\) to implement arrays, lists, etc.. (good enough if you don’t care about the difference between \(O(n)\) and \(O(n^2)\))
\(UPDATE(T,i,v) = T'\) such that \(T'_j = \begin{cases}T_i & i\neq j \\ v & i=j \end{cases}\)
Can “hardwire” constants. E.g. for \(a\in \{0,1\}^n\) compute \(EQUAL_a:\{0,1\}^n \rightarrow \{0,1\}\) that outputs \(1\). Use zero and one.
Replace finite loops or recursion with copy-paste.
Rule of thumb: If your computer can do it in \(s\) cycles, there is a \(\approx s^2\) line NAND program to do it too.

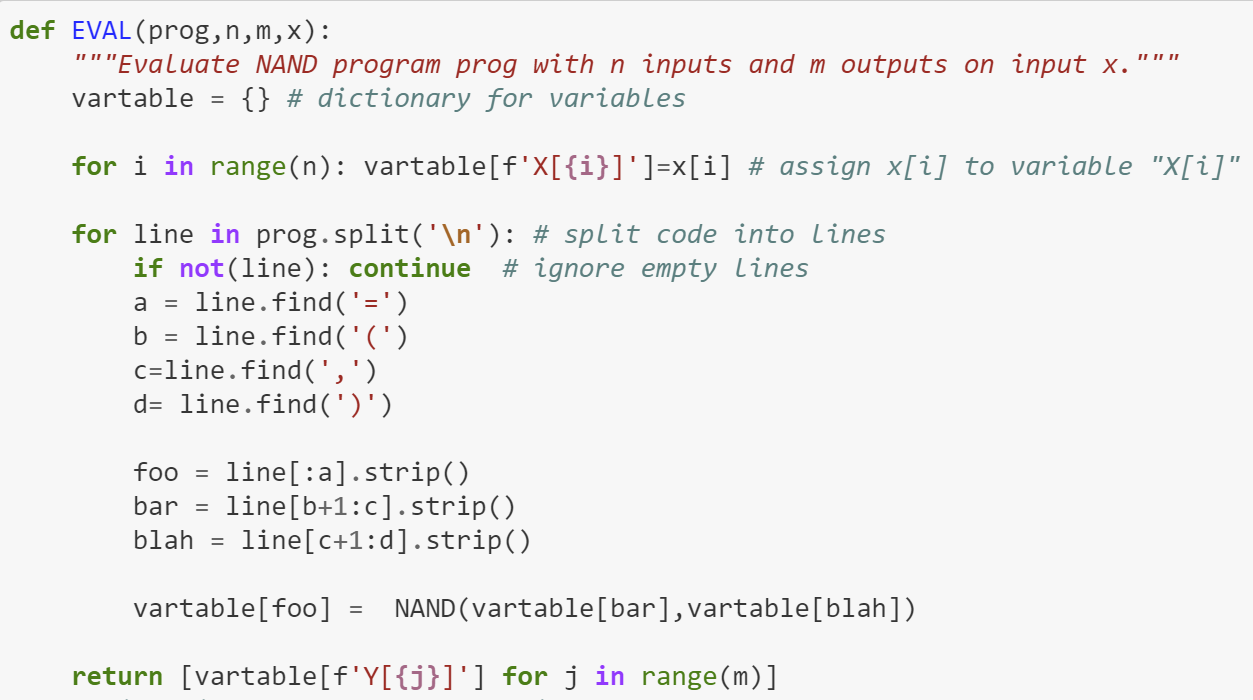

Proof of Theorem 2
Bottom Line
- Can represent a program as a string
- Exists universal program that takes programs as input and can evaluate them.
- For some functions, best program requires few lines (e.g., \(O(n)\), \(poly(n)\)), some functions are inherently intractable (e.g., no program with \(\ll 2^n\) lines)
Next up
Intuitive notion of algorithm: describe in one page an arbitrary length computation.
NAND programs: \(s\) lines \(=\) \(s\) steps. Can access at most \(3s\) locations of memory.
Introduce NAND++: NAND with loops and arrays.
NAND= straightline programs = Boolean circuits
NAND++ = general programs = Turing machines
